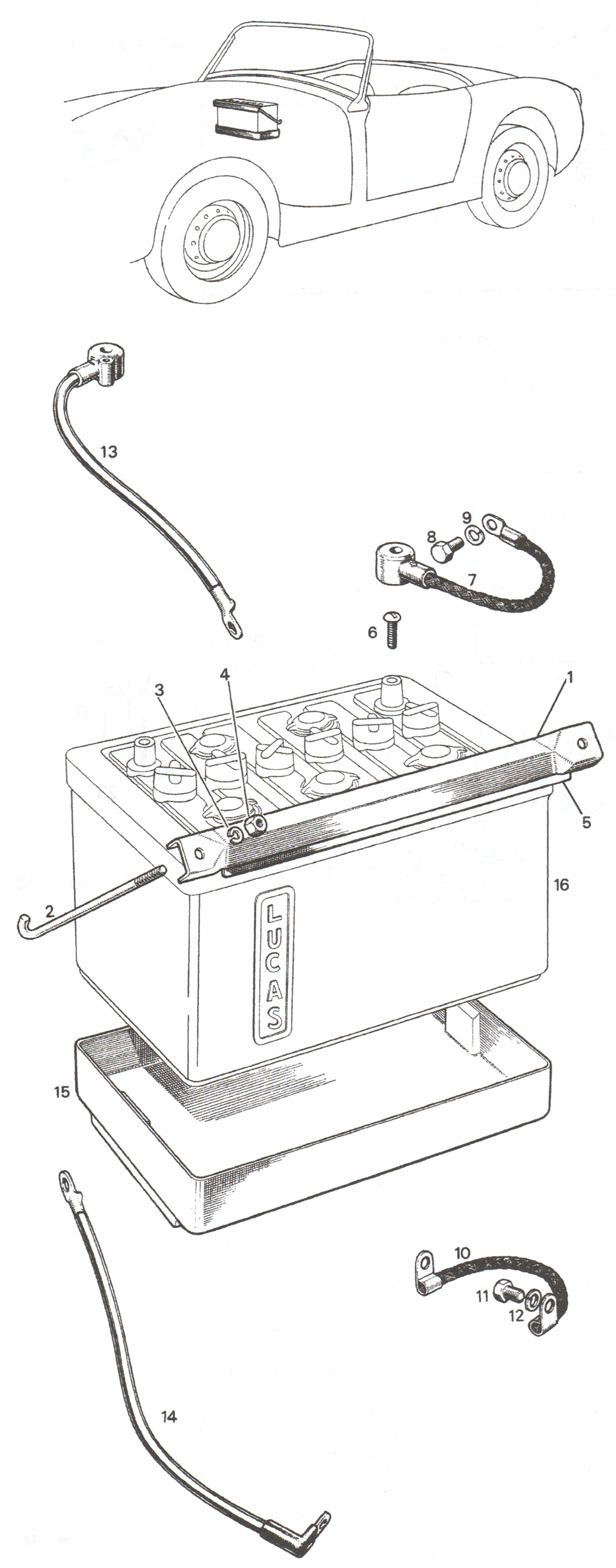

948cc & 1098cc Battery, Fittings, Switches, Fuse Box & Control Box - Chapter 10 Pages 3-4
Sprite Catalog Page 10-4
Records - of

#

Part No

Qty

Description

14G5508 1
BATTERY BAR SPRIDGET
(A) UP TO CHASSIS NO.HAN7 27755
2A2085 1
STARTER CABLE BUGEYE
(B) ALSO LHD SPRITE I
AHA6202 1
CABLE, STARTER PULL, REP SPM
(B) NOT SPRITE I
RFN303 1
GROMMET 9/16 X 3/16
(B)
88G294 2
J-BOLT with nuts >'71
(A) GAN2 18219
AHA7769 2
"J" BOLT BATTERY '71 & LATER SPRITE
(A) GAN2 18220
3H950 1
CABLE CONN PULL START
(B)
NT604041 4
JAM NUT undefined
(A) 1/4"
14G7532 1
PACKING STRIP
(A)
8G548 2
RUBBER DUST BOOT STARTER SWITCH CABLE
(B)
2A9074 1
TURN SIGNAL SWITCH '61-64 SPRITE MIDGET
(B)
2K8645A 1 SET
ALTERNATIVE WINGED BATTERY SCREWA
(A)
1B2802 1
CABLE,BATT POS TO MASTER BN1, BN2
(A)
3H3100 1
PANEL LIGHT SWITCH
(B)
SWH101 1
VOLTAGE REGULATOR SCREW TERM
(B) SPRITE I ONLY SCREW CONNECTORS
SH605041 1
EARTH SCREW
(A) 5/16"
GHF332 1
LOCKWASHER 5/16 IN VARIOUS
(A) 5/16"
10  2K6167 1
CABLE ENGINE/CHASSIS
(A) SLAVE CYLINDER TO FLOOR
11  SH606051 1
EARTH SCREW
(A) 3/8" FLOOR END
11  SH506095 1
SLAVE CYLINDER/EARTH SCREW
(A) 3/8" COARSE UNC THREAD
11  1G2613 1
FUSE BOX***SEE SWH103***
(B) SPRITE I ONLY SCREW CONNECTORS
12  188218 4
FUSE 35 AMP
(B) SPRITE I ONLY 17.5 AMP. CONTINUOUS
12  GHF333 2
LOCKWASHER 3/8 IN undefined
(A) 3/8"
13  BHA4257 1
**NLA**BAT-STR CABLE
(A) NLA
14  AHA7776 1
CABLE S0LENOID-STRTR
(A)
14  11G2007 1
DIP SWITCH
(B) SPRITE I ONLY
15  ACA9673 1
**NLA**BATTERY TRAY
(A) NLA
16  GBY0001 1
REPLACEMENT BATTERY
(A) CALLERS ONLY
16  SWT107 1
FLASHER SCREW TYPE
(B) SPRITE I ONLY SCREW ON CONNECTORS
17  KGM962 1
BATTERY MOUNTING KIT LATER SPRIDGET
(A) LATER STYLE NOT ILLUSTRATED
19  2H4841 1
WIPER SWITCH BUGEYE
(B) SPRITE I ONLY
20  11K9101 1
KNOB
(B) SPRITE I ONLY
21  3H1557 1
IGNITION & HEADLITE SWITCH FOR BUGEYE
(B) SPRITE I ONLY 31270
22  3H1558 1
LIGHT KNOB BUGEYE
(B) SPRITE I ONLY LUCAS 316285
23  24G1345 1
IGNITION SWITCH TUMBLER MKI MKII MINI & Morris Minor
(B) SPRITE I ONLY
24  GEU603 1
VOLTAGE REGULATOR NCB101 SPADE TERMINAL
(B) SPRITE II & MIDGET I SPADE CONNECTORS
25  7H5522 1
CONTROL BOX COVER
(B) SPRITE II & MIDGET I
28  606253 1
FUSE BOX
(B) SPRITE II & MIDGET I SPADE CONNECTORS
29  54380114 1
COVER FUSE BOX TWO FUSE TYPE
(B) SPRITE II & MIDGET I
30  188218 4
FUSE 35 AMP
(B) SPRITE II & MIDGET I 17.5 AMP. CONTINUOUS
32  SWH127 1
SWITCH HI BEAM PRE 64
(B) SPRITE II & MIDGET I
34  GFU2103 1
TURN SIGNAL FLASHER UNIT 3 PRONG MK I/II
(B) SPRITE II & MIDGET I PUSH ON SPADE CONNECTORS
37  149011A 1
WIPER SWITCH***SEE 2A9129***
(B) SPRITE II & MIDGET I LUCAS 34889
38  BCA4294 1
SIDE AND HEAD LIGHT SWITCH***SEE 1H9077***
(B) SPRITE II & MIDGET I 31837
39  BHA4234 1
SWT IGN 61-72 DASH MT
(B) SPRITE II & MIDGET I
40  24G1345 1
IGNITION SWITCH TUMBLER MKI MKII MINI & Morris Minor
(B) SPRITE II & MIDGET I
41  RTC430 A/R
AUX SWITCH
(B) SPRITE II & MIDGET I TOGGLE TYPE AS (37) NOT ILLUSTRATED
42  37H4727A 1
FUSE BOX COVER***SEE AAU1839***
(B) SPRITE II & MIDGET I
43  AAU1839 1
FUSE BOX LATE TYPE
(B) SPRITE II & MIDGET I LATE
