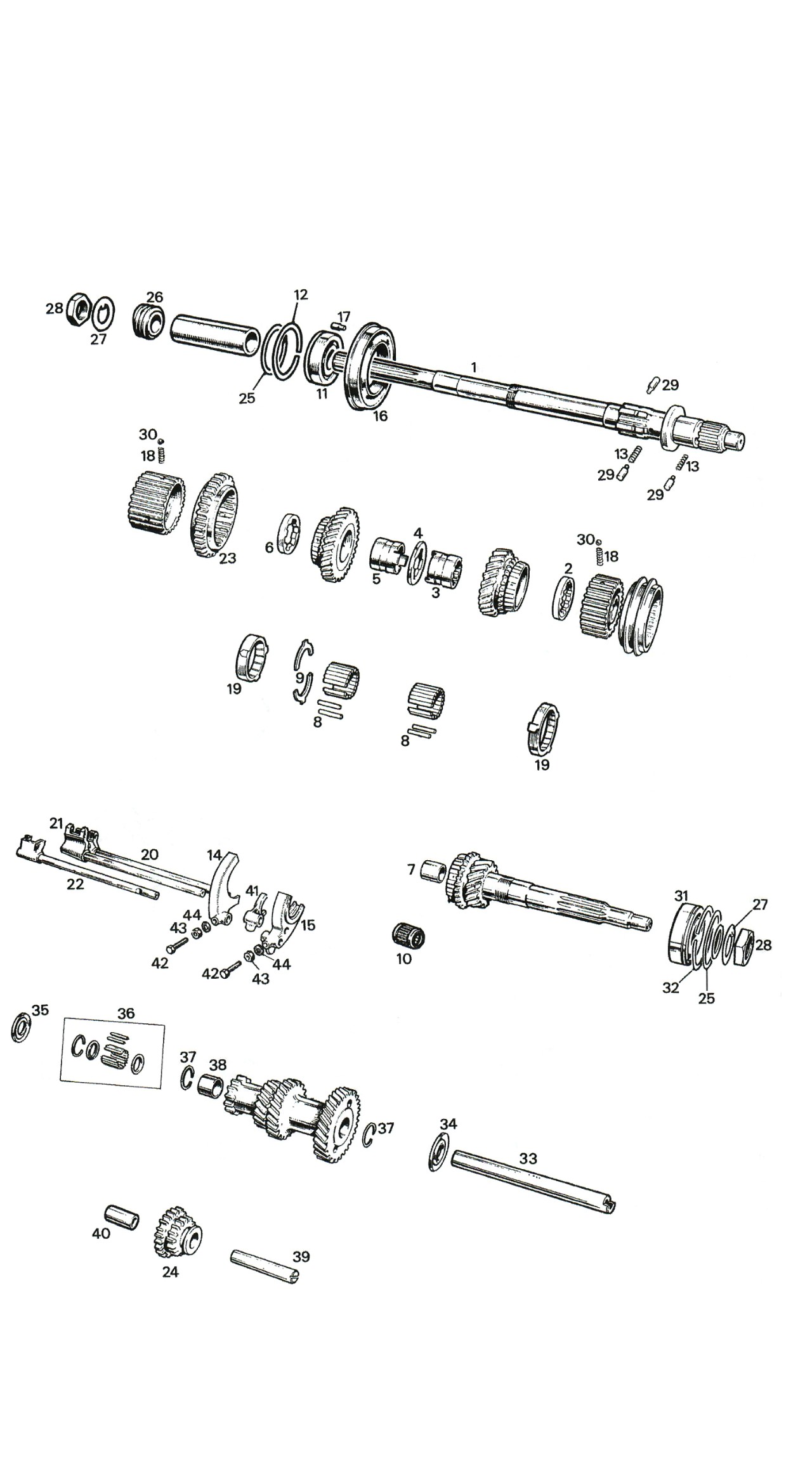

Sprite/Midget 948cc & 1098cc Gearbox Internals
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | 22G146 | 1 | MAINSHAFT RIBCASE NLA |
| 1 | 22A213 | 1 | 3RD MOTION SHAFT SPRITE I ONLY 9CC GEARBOX No Longer Available |
| 2 | 22A550 | 1 | 0.212~.213" THRUST WASHER SPRITE I ONLY 9CC GEARBOX (SELECTIVE) No Longer Available |
| 2 | 22A536 | 1 | 0.214"~.215" tHRUST WASHER SPRITE I ONLY 9CC GEARBOX (SELECTIVE) No Longer Available |
| 2 | 22A537 | 1 | .216"~.217" THRUST WASHER SPRITE I ONLY 9CC GEARBOX (SELECTIVE) No Longer Available |
| 2 | 22A538 | 1 | .218"~.219" THRUST WASHER SPRITE I ONLY 9CC GEARBOX (SELECTIVE) No Longer Available |
| 3 | 2A3290 | 1 | 3RD GEAR BUSH SPRITE I ONLY 9CC GEARBOX |
| 4 | 22G374 | 1 | INTERLOCK SPRITE I ONLY 9CC GEARBOX |
| 5 | 2A3298 | 1 | 2ND GEAR BUSH SPRITE I ONLY 9CC GEARBOX |
| 6 | 2A3042 | 1 | REAR THRUST 2ND GEAR SPRITE I ONLY 9CC GEARBOX Use U-2A3042 |
| 7 | 2A3034 | 1 | BUSH FOR 1ST TO 3RD MOTION SHAFT SPRITE I ONLY 9CC GEARBOX |
| 8 | 22G149 | 56 | NEEDLE BRG 3 SYN EACH SPRITE II & MIDGET I 948CC, 9CG GEARBOX ONLY |
| 8 | 22G149 | 52 | NEEDLE BRG 3 SYN EACH 1098CC, 10CG GEARBOXES ONLY |
| 9 | 22G157 | 2 | HALF WASHER 2ND GEAR 1098CC, 10CG GEARBOXES ONLY No Longer Available |
| 9 | AEA3200 | 2 | HALF WASHER SPRITE II & MIDGET I 948CC, 9CG GEARBOX ONLY No Longer Available |
| 10 | CHM172 | 1 | SMALL PILOT BEARING 9CG, 10CG, AND 10CC ENGINES |
| 11 | 22A465 | 1 | BEARING 3RD MOTION RIBCASE 1098CC, 10CG GEARBOXES ONLY Use 10G184 |
| 11 | 10G141 | 1 | BEARNG 1ST MOTION ALL SPRITES/MIDGETS ALL 948CC, 9C & 9CG GEARBOXES |
| 12 | 6K558 | 1 | SPRING RING ALL 948CC, 9C & 9CG GEARBOXES No Longer Available But Included With Most Bearings |
| 13 | 22A528 | 1-2 AS REQ. | SPRING ALL 948CC, 9C & 9CG GEARBOXES No Longer Available |
| 13 | 22G154 | 2 | SPRING 1098CC, 10CG GEARBOXES ONLY No Longer Available |
| 14 | 22A469 | 1 | FORK 1&2 GEAR ALL RIBCASE 1098CC, 10CG GEARBOXES ONLY Use U-22A469 |
| 14 | 2A3019 | 1 | FORK 1&2 GEAR SMOOTH ALL 948CC, 9C & 9CG GEARBOXES No Longer Available |
| 15 | 2A3021 | 1 | 3RD/4TH SEECTOR FORK ALL 948CC, 9C & 9CG GEARBOXES No Longer Available |
| 15 | 22A471 | 1 | FORK 3&4 SELECTOR RIBCASE 1098CC, 10CG GEARBOXES ONLY Use U-22A471 |
| 16 | 22A463 | 1 | BEARING HOUSING 1098CC, 10CG GEARBOXES ONLY No Longer Available |
| 17 | 1G3530 | 1 | LOCATING PEG 1098CC, 10CG GEARBOXES ONLY No Longer Available |
| 18 | 22G317 | 6 | SPRING SYNCHRO 10CC, 10CG GEARBOXES ONLY USE 22A367 |
| 19 | 22G2033 | 3 | TRANSMISSION SYNCHRO BAULK RING 10CC, 10CG GEARBOXES ONLY Use 22G2033EVO |
| 20 | 22A468 | 1 | REVERSE SELECTOR ROD 10CC, 10CG GEARBOXES ONLY Use U-22A468 |
| 21 | 22A472 | 1 | 3RD/4TH SEECTOR ROD 10CC, 10CG GEARBOXES ONLY Use U-22A472 |
| 22 | 22A470 | 1 | 1ST/2ND SELECTOR ROD 10CC, 10CG GEARBOXES ONLY Use U-22A470 |
| 23 | 22G257 | 1 | 1ST GEAR 109CC, 10CG GEARBOXES ONLY No Longer Available - USE ONLY WITH 22G76LAYGEAR |
| 24 | 22A453 | 1 | REVERSE GEAR 10CC, 10CG GEARBOXES ONLY Use U-22A453 - USE WITH 22G76 LAYGEAR ONLY |
| 25 | 2K8737 | A/R | SHIM BIG BRGS .004 ALL GEARBOXES 948 & 1098CC |
| 25 | 2K8738 | A/R | SHIM BIG BRGS .006 ALL GEARBOXES 948 & 1098CC SELECTIVE |
| 25 | 2K8739 | A/R | SHIM BIG BRGS .010 ALL GEARBOXES 948 & 1098CC |
| 26 | 2A3371 | 1 | SPEEDO GEAR ALL GEARBOXES 948 & 1098CC No Longer Available |
| 27 | 2A3035 | 2 | LOCKTAB 1ST & 3RD MOTION RIBCASE ALL GEARBOXES 948 & 1098CC |
| 28 | 2K6677 | 2 | NUT, FIRST MOTION SHAFT SPM 948-1098 ALL GEARBOXES 948 & 1098CC |
| 29 | 22A495 | 3 | LOCATING PEG ALL GEARBOXES 948 & 1098CC |
| 30 | BLS107 | 6 | BALL FOR SLIDER HUB ALL GEARBOXES 948 & 1098CC |
| 31 | 2A3245 | 1 | BEARING ALL GEARBOXES 948 & 1098CC Use 10G141 |
| 32 | 6K558 | 1 | SPRING RING ALL GEARBOXES 948 & 1098CC No Longer Available But Included With Most Bearings |
| 33 | 22G673 | 1 | LAYSHAFT ALL GEARBOXES 948 & 1098CC Use 10G149 |
| 34 | 2A3023 | 1 | WASHER LAYSHAFT LARGE (FRONT) ALL GEARBOXES 948 & 1098CC 0.125" No Longer Available |
| 35 | 2A3024 | 1 | LAYSHAFT THRUST WASHER .123"~.124" ALL GEARBOXES 948 & 1098CC |
| 35 | 2A3025 | 1 | LAYGEAR THRUST WASHER .125"~.126" ALL GEARBOXES 948 & 1098CC |
| 35 | 2A3026 | 1 | LAYGEAR THRUST WASHER .127"~.128" ALL GEARBOXES 948 & 1098CC 0.127 |
| 35 | 2A3027 | 1 | LAGEAR THRUST WASHER .130"~.131" ALL GEARBOXES 948 & 1098CC |
| 36 | 88G396 | 1 | BEARING LAYGEAR SMALL ALL GEARBOXES 948 & 1098CC |
| 37 | 22G278 | 2 | CIRCLIP LAYGEAR ALL GEARBOXES 948 & 1098CC |
| 38 | 22G277 | 1 | DISTANCE PIECE No Longer Available |
| 39 | 88G216 | 1 | EARLY REVERSE IDLER SHAFT No Longer Available |
| 40 | 2A3282 | 1 | REVERSE BUSH No Longer Available |
| 41 | 2A3284 | 1 | REVERSE SELECTOR FORK ALL GEARBOXES 948 & 1098CC Use U-2A3284 |
| 42 | 2A3492 | 3 | LOCATING SCREW No Longer Available |
| 43 | FNZ504 | 3 | LOCK NUT No Longer Available |
| 44 | GHF321 | 3 | LOCK WASHER 1/4" ALL GEARBOXES 948 & 1098CC 1/4 |
