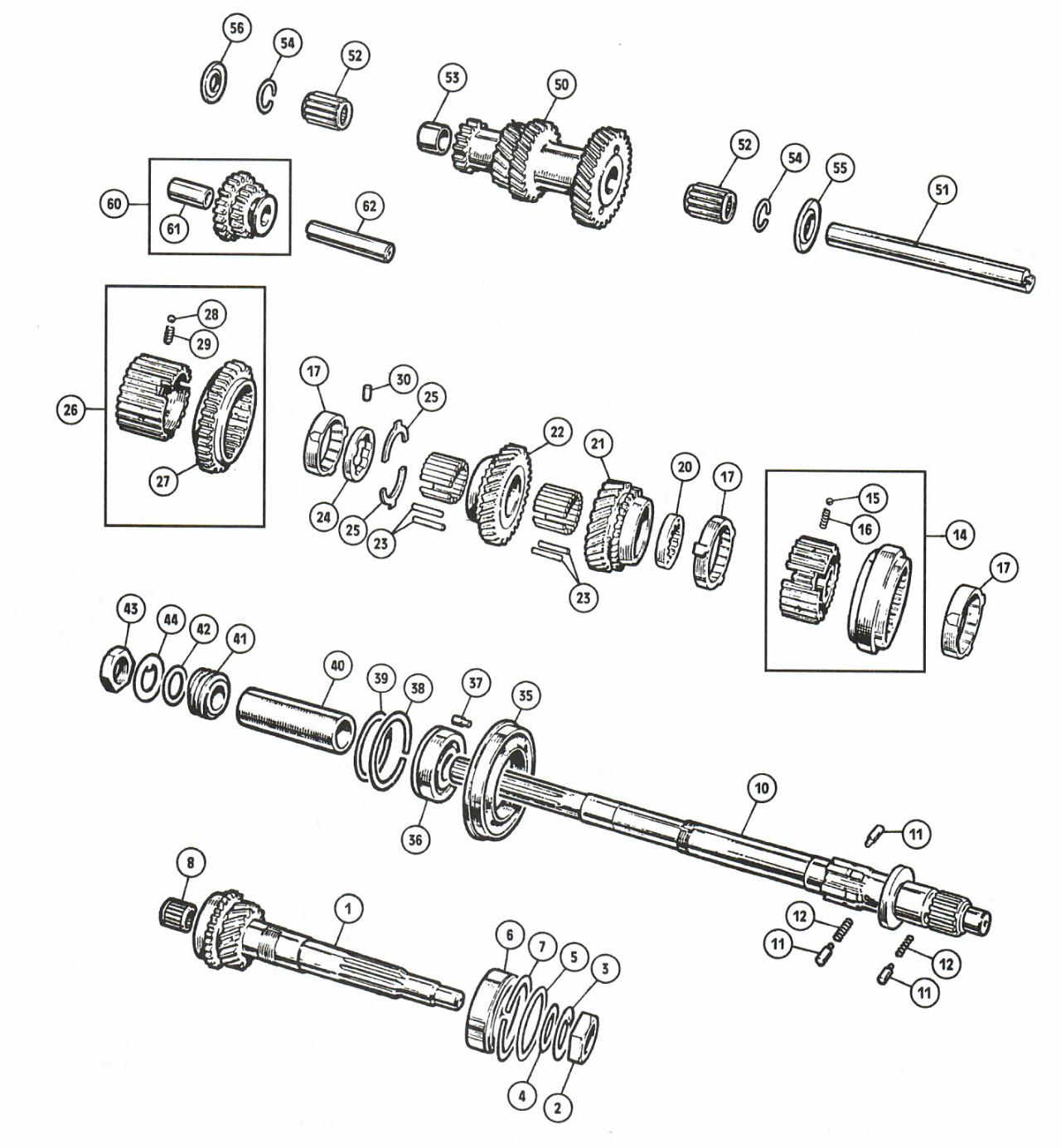

Sprite/Midget 1275 Ribcase Gearbox Internal
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | 22G229 | 1 | INPUT SHAFT - 1ST MOTION SHAFT |
| 2 | 2K6677 | 1 | NUT INPUT SHAFT |
| 3 | 2A3035 | 1 | LOCK TAB |
| 4 | 6K559 | 1 | PLAIN WASHER (IF FITTED) No Longer Available |
| 5 | 2K8737 | A/R | SHIM .004" |
| 5 | 2K8738 | A/R | SHIM .006" |
| 5 | 2K8739 | A/R | SHIM .010" |
| 6 | 2A3245 | 1 | BEARING INPUT SHAFT (1ST MOTION) USE 10G141 |
| 7 | 6K558 | 1 | SPRING RING FOR BEARING No Longer Available |
| 8 | CHM172 | 1 | BEARING INPUT SHAFT TO MAINSHAFT |
| 10 | 22G146 | 1 | MAINSHAFT RIBCASE No Longer Available |
| 11 | 22A495 | 3 | LOCATING PEG |
| 12 | 22G154 | 2 | SPRING FOR PEG No Longer Available |
| 14 | AEG3009 | 1 | 3RD/4TH OUTER SYNCHRO ONLY |
| 15 | BLS107 | 3 | BALL FOR SYNCHROS |
| 16 | 22G317 | 3 | SPRING FOR SYNCHRO SLIDER USE 22A367 |
| 17 | 22G2033 | 3 | SYNCHRO BAULK RING REPRODUCTION USE 22G2033MS |
| 17 | 22G2033 | 3 | SYNCHRO BAULK RING ORIGINAL SPEC USE 22G2033EVO |
| 20 | 22G185 | 1 | COLLAR, LOCKING No Longer Available |
| 21 | 22G1121 | 1 | 3RD GEAR |
| 22 | 22G1120 | 1 | 2ND GEAR |
| 23 | 22G149 | 52 | NEEDLE ROLLER 26 NEEDED PER GEAR, 52 TOTAL |
| 24 | 22G156 | 1 | COLLAR, LOCKING No Longer Available |
| 25 | 22G157 | 2 | THRUST WASHER LOCKING COLLAR No Longer Available |
| 26 | 22G1118 | 1 | 1ST GEAR WHEEL WITH 2ND GEAR SLIDER HUB USE 22G1119 |
| 27 | 22G1119 | 1 | 1ST GEAR SLIDER WHEEL |
| 28 | BLS107 | 3 | BALL FOR SYNCHROS |
| 29 | 22G317 | 3 | SPRING FOR SYNCHRO SLIDER USE 22A367 |
| 30 | 22G89 | 1 | PLUNGER No Longer Available |
| 35 | 22A463 | 1 | HOUSING MAINSHAFT BEARING USE U-22A463 |
| 36 | 22A465 | 1 | MAINSHAFT/3RD MOTION BEARING USE 10G184 |
| 37 | 1G3530 | 1 | PEG LOCATING HOUSING No Longer Available |
| 38 | 6K558 | 1 | CIRCLIP, BEARING No Longer Available |
| 39 | 2K8737 | A/R | SHIM .004" |
| 39 | 2K8738 | A/R | SHIM .006" |
| 39 | 2K8739 | A/R | SHIM .010" |
| 40 | 22A466 | 1 | DISTANCE TUBE No Longer Available |
| 41 | 2A3371 | 1 | DRIVE GEAR, SPEEDOMETER |
| 42 | 6K559 | 1 | PLAIN WASHER (IF FITTED) No Longer Available |
| 43 | 2K6677 | 1 | NUT FOR MAINSHAFT |
| 44 | 2A3035 | 1 | LOCK TAB |
| 50 | 22G1100 | 1 | LAYGEAR |
| 51 | 22G673 | 1 | LAYSHAFT USE 10G149 |
| 52 | 88G396 | 2 | CAGED ROLLER BEARING |
| 53 | 22G277 | 1 | DISTANCE PIECE No Longer Available |
| 54 | 22G278 | 2 | CIRCLIP, BEARING RETAINING |
| 55 | 2A3023 | 1 | THRUST WASHER LAYGEAR, FRONT |
| 56 | 2A3024 | 1 | THRUST WASHER, REAR .123-.124" |
| 56 | 2A3025 | 1 | THRUST WASHER, REAR .125-.126" |
| 56 | 2A3026 | 1 | THRUST WASHER, REAR .127-.128" |
| 56 | 2A3027 | 1 | THRUST WASHER, REAR .130-.131" |
| 60 | 22G1114 | 1 | REVERSE GEAR IDLER |
| 61 | 2A3282 | 1 | BUSH. REVERSE GEAR IDLER No Longer Available |
| 62 | 88G216 | 1 | SHAFT, REVERSE GEAR No Longer Available |
