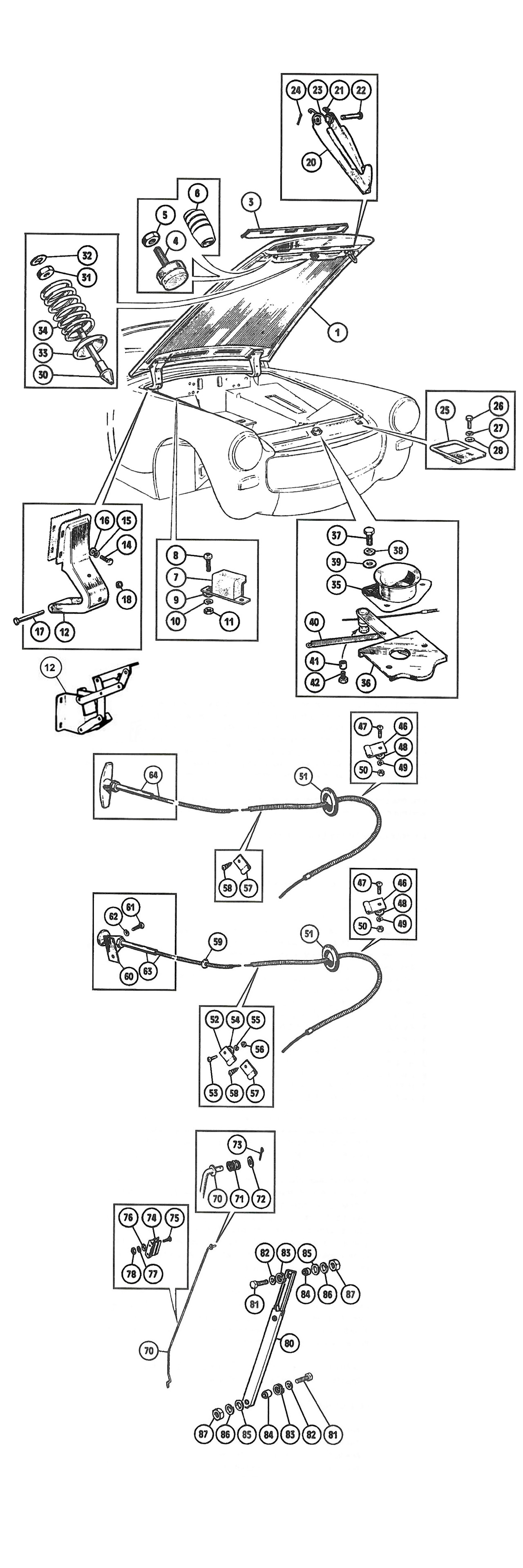

Sprite/Midget Bonnet and Fittings Sprite Mk IV & Midget MK III & 1500
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | CZJ380 | 1 | BONNET 1962-1976 |
| 1 | CZJ704 | 1 | BONNET GAN6-183740 (SEPT 1976) ONWARD |
| 3 | MS12A | 1 | FRONT BONNET REPAIR PANEL No Longer Available |
| 4 | AHA5654 | 2 | BONNET BUFFER 1962-SEPT 1976 |
| 5 | NT605041 | 2 | BUFFER LOCK NUT 1962-SEPT 1976 |
| 6 | AAU5486A | 2 | BONNET BUFFER FROM SEPT 1976 ONWARD |
| 7 | AHA5674 | 2 | BONNET BUFFER SIDE |
| 8 | PMZ308 | 4 | SCREW, 3/16 UNF X 1/2" LONG BUFFER TO FENDER DRAINAGE CHANNEL |
| 9 | GHF306 | 4 | WASHER, PLAIN 3/16" x 3/8" OD |
| 10 | WL700101 | 4 | LOCK WASHER, 3/16" |
| 11 | GHF206 | 4 | NUT, 3/16" UNF |
| 12 | 14A4684 | 2 | BONNET HINGE USED FROM 1962 - DEC 1968 |
| 12 | CZJ104 | 1 | US SPEC BONNET HINGE RIGHT No Longer Available - FROM CHASSIS NO. HAN9-77591~GAN4-66226 (DEC 1968) |
| 12 | CZJ105 | 1 | US SPEC BONNET HINGE LEFT No Longer Available - FROM CHASSIS NO. HAN9-77591~GAN4-66226 (DEC 1968) |
| 14 | SH604051 | 8 | BOLT, 1/4 UNF X 5/8" LONG |
| 15 | GHF331 | 8 | LOCK WASHER, 1/4" |
| 16 | GHF300 | 8 | WASHER, PLAIN 1/4" |
| 17 | BH605241 | 2 | BOLT, 5/16" UNF X 3" LONG |
| 18 | GHF242 | 2 | NUT, NYLOC 5/16" UNF NOTE: SOME CARS DON'T REQUIRE THIS NUT AS THE NUT IS WELDED IN PLACE FROM THE FACTORY |
| 20 | 14A366 | 1 | HOOK, SAFETY CATCH USE 14A366 |
| 21 | 4B8646 | 1 | SPRING, SAFETY HOOK |
| 22 | CLZ316 | 1 | CLEVIS PIN 3/16" X 1" LONG |
| 23 | 4B8768 | 1 | SPACER - DISTANCE PIECE FOR BONNET HOOK No Longer Available |
| 24 | GHF500 | 1 | SPLIT PIN (COTTER PIN) USE GFK101 |
| 25 | AHA5617 | 1 | SAFETY CATCH BRACKET ON SLAM PANEL |
| 26 | 53K126 | 2 | BOLT, 3/16"BSF X 1/2" LONG |
| 27 | WL700101 | 2 | LOCK WASHER, 3/16" |
| 28 | GHF306 | 2 | WASHER, PLAIN 3/16" x 3/8" OD |
| 30 | 14G2444 | 1 | BONNET LOCKING PIN |
| 31 | NT606041 | 1 | NUT, LOCKING PIN |
| 32 | GHF333 | 1 | LOCK WASHER, 3/8" |
| 33 | 4G3676 | 1 | THIMBLE, PIN |
| 34 | 4G1588 | 1 | BONNET PIN SPRING |
| 35 | AHA5543 | 1 | LOCATING CUP |
| 36 | 4G3035 | 1 | CATCH PLATE |
| 37 | SH604051 | 3 | BOLT, 1/4 UNF X 5/8" LONG CUP & PLATE TO LANDING (SLAM) PANEL |
| 38 | GHF331 | 3 | LOCK WASHER, 1/4" |
| 39 | GHF300 | 3 | WASHER, PLAIN 1/4" |
| 40 | 4G2494 | 1 | SPRING, CATCH RETURN |
| 41 | 24G1052K | 1 | TRUNNION FOR RELEASE CABLE COMPLETE |
| 42 | 53K1016 | 1 | SCREW FOR TRUNNION SCREW ONLY |
| 46 | PCR307 | 1 | CLIP, UNDERSIDE OF LANDING (SLAM) PANEL |
| 47 | PMZ308 | 1 | SCREW, 3/16 UNF X 1/2" LONG |
| 48 | GHF306 | 1 | WASHER, PLAIN 3/16" x 3/8" OD |
| 49 | WL700101 | 1 | LOCK WASHER, 3/16" |
| 50 | GHF206 | 1 | NUT, 3/16" UNF |
| 51 | 600395 | 1 | GROMMET, BONNET RELEASE THROUGH MUDSHIELD |
| 52 | PCR307 | 1 | CLIP, LEFT HAND INNER WHEEL ARCH SPRITES & MIDGETS 1962-1974 |
| 53 | PMZ308 | 1 | SCREW, 3/16 UNF X 1/2 SPRITES & MIDGETS 1962-1974 |
| 54 | GHF306 | 1 | WASHER, PLAIN 3/16" x 3/8" OD USE WA1090 - SPRITES & MIDGETS 1962-1974 |
| 55 | WL700101 | 1 | LOCK WASHER, 3/16" SPRITES & MIDGETS 1962-1974 |
| 56 | GHF206 | 1 | NUT, 3/16" UNF SPRITES & MIDGETS 1962-1974 |
| 57 | PCR307 | 1 | CLIP, LEFT HAND BUMPER BEAM 1500 MIDGET ONLY |
| 58 | GHF425 | 1 | SCREW, NO. 10 X 1/2" LONG 1500 MIDGET ONLY |
| 59 | RFR103 | 1 | GROMMET, LEFT HAND TOE BOARD SPRITES & MIDGETS 1962-MAY 1978 |
| 60 | AHA5517 | 1 | BRACKET, CABLE TO FOOTWELL SIDE SPRITE & MIDGET 1962-MAY 1978 |
| 61 | PMZ306 | 2 | SCREW, 3/16 UNF X 3/8" LONG SPRITES & MIDGETS 1962-MAY 1978 |
| 62 | WL700101 | 2 | LOCK WASHER, 3/16" SPRITES & MIDGETS 1962-MAY 1978 |
| 63 | AHA5653 | 1 | BONNET, CABLE RELEASE - ROUND KNOB SPRITES & MIDGETS 1962-MAY 1978 |
| 64 | CHA460 | 1 | BONNET, CABLE RELEASE - T-HANDLE MG MIDGET 1978 ONWARD |
| 70 | AHA7640 | 1 | BONNET STAY ROD SPRITES & MIDGETS 1961-1969 |
| 71 | AAA2398 | 1 | SPRING, ANTI RATTLE No Longer Available - SPRITE & MIDGET 1961-1969 |
| 72 | GHF301 | 1 | WASHER, PLAIN 5/16" SPRITES & MIDGETS 1961-1969 |
| 73 | GHF502 | 1 | SPLIT PIN (COTTER PIN) SPRITES & MIDGETS 1961-1969 |
| 74 | AHH5460 | 1 | CLIP, PROP ROD SECURING SPRITES & MIDGETS 1961-1969 |
| 75 | PMZ306 | 2 | SCREW, 3/16 UNF X 3/8" LONG SPRITES & MIDGETS 1961-1969 |
| 76 | GHF306 | 2 | WASHER, PLAIN 3/16" x 3/8" OD SPRITES & MIDGETS 1961-1969 |
| 77 | WL700101 | 2 | LOCK WASHER, 3/16" SPRITES & MIDGETS 1961-1969 |
| 78 | GHF206 | 2 | NUT, 3/16" UNF SPRITES & MIDGETS 1961-1969 |
| 80 | AHA9717 | 1 | TELESCOPIC STAY, BONNET OCT 1969 ONWARD |
| 81 | SH604071 | 2 | BOLT, 1/4" UNF X 7/8" LONG OCT 1969 ONWARD |
| 82 | GHF300 | 2 | WASHER, PLAIN 1/4" OCT 1969 ONWARD |
| 83 | WS600061 | 2 | THACKERY WASHER OCT 1969 ONWARD |
| 84 | 12H1062 | 2 | SPACER FOR STAY BOLT OCT 1969 ONWARD |
| 85 | GHF302 | 2 | WASHER, PLAIN 3/8" OCT 1969 ONWARD |
| 86 | GHF331 | 2 | LOCK WASHER, 1/4" OCT 1969 ONWARD |
| 87 | GHF200 | 2 | NUT, 1/4" UNF OCT 1969 ONWARD |
