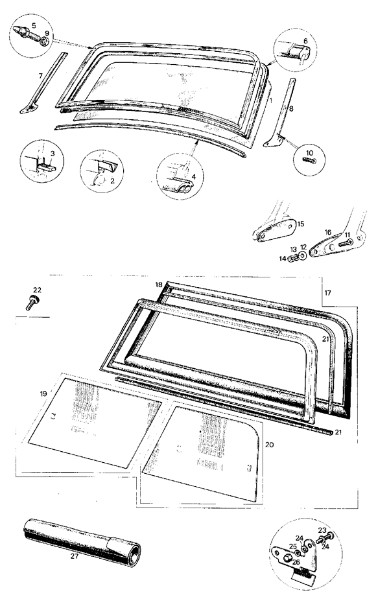

Sprite/Midget Sprite Mk I & II, Midget Mk I Windscreen & Side Screens
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 0 | WINDSCREEN WINDSCREEN |
||
| 1 | 14A4719 | 1 | WINDSHIELD GLASS 58 BUGEYE 1958 BUGEYE (SPRITE MK I) NOT ILLUSTRATED |
| 1 | AHA5317 | 1 | WINDSHIELD BUGEYE 59-63 |
| 2 | 14A4728 | 1 | WINDSHIELD GLAZING RUBBER 58 ***NLA*** NLA |
| 3 | 14A4727 | 1 | PACKING RUBBER;58 NLA SPRITE I CHASSIS NO. AN5-5476 |
| 4 | 14A4729 | 1 | SEAL WINDSHIELD-BODY '61 - '64 SPRITE MIDGET NOT ILLUSTRATED |
| 5 | AHA5255 | 9 | FATENING PEG NOT ILLUSTRATED |
| 5 | 37H9719 | 2 | LOCATING PEG |
| 6 | AHA5321 | 1 | SEAL WINDSHIELD 59-63 SPRITE I FROM CHASSIS NO. AN5-5477 |
| 6 | AHA5322 | 1 | SEAL WINDSHIELD FRAME TO BODY '59-'63 ALL SPRITE II & MIDGET I |
| 7 | AHA5319 | 1 | WINDSHIELD PILLAR RIGHT HAND 58-63 SPRITE/MIDGET |
| 8 | AHA5320 | 1 | WINDSHIELD PILLAR LEFT HAND '58-'63 |
| 9 | AJD8012Z | 2 | NUT |
| 10 | RMZ308 | 6 | SCREW, W/S PILLAR '58-64 SPRITE MKI MINI DOOR STRIKER 3/16" |
| 11 | AHA5486 | 4 | SCREW WINDSHIELD PILLAR FOR SPRITE OR MIDGET 5/16" |
| 12 | PWZ205 | 4 | WASHER 5/16 MULTI MG & AH & TR 5/16" |
| 13 | GHF332 | 4 | LOCKWASHER 5/16 IN VARIOUS 5/16" |
| 14 | GHF201 | 4 | 5/16 PLAIN NUT 5/16" |
| 15 | 14A4730 | 1 | PAD PILLAR POST EACH |
| 16 | 14A4730 | 1 | PAD PILLAR POST EACH |
| 17 | AHA5414 | 1 | RH SIDE SCREEN ASSY SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 NOT ILLUSTRATED |
| 17 | AHA5415 | 1 | LH SIDE SCREEN ASSY SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 |
| 17 | AHA6501 | 1 | RH SIDE SCREEN SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 17 | AHA6502 | 1 | LH SIDE SCREEN SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 18 | AHA6505 | 1 | SEAL RH OUTER SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 18 | AHA6506 | 1 | SEAL LH OUTER SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 18 | AHA5418 | 1 | SIDE CURTAIN SEAL RIGHT HAND SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 NOT ILLUSTRATED |
| 18 | AHA5419 | 1 | SEAL SIDE CURTAIN LEFT HAND SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 |
| 19 | AHA5422 | 2 | LEFT HAND SIDE CURTAIN WINDOW EARLY SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 NOT ILLUSTRATED |
| 19 | AHA5800 | 1 | RH FRONT PERSPEX SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 NOT ILLUSTRATED |
| 19 | AHA5801 | 1 | HOSE 4"DIA;1098 1275 SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 |
| 19 | AHA6509 | 1 | RH FRONT PERSPEX SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 19 | AHA6510 | 1 | LH FRONT PERSPEX SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 20 | AHA6512 | 1 | RH REAR PERSPEX SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 20 | AHA6513 | 1 | LH REAR PERSPEX SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 20 | AHA5432 | 1 | RH REAR PERSPEX SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 NOT ILLUSTRATED |
| 20 | AHA5424 | 1 | LH REAR PERSPEX SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 |
| 21 | AHA5420 | 2/4 | FELT TRACK SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1, QUNTITY INCREASED ON MIDGET |
| 21 | ALA5420 | 4 | FELT TRACK SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 |
| 22 | AHA6497 | 4 | THUMB SCREW SIDE SCREENS, 1098cc SPRITE II & MIDGET I WITH DISC BRAKES HAN7, GAN2 NOT ILLUSTRATED |
| 22 | AHA5263 | 4 | THUMBSCREW SIDE CURTAIN SIDE SCREENS, 948cc SPRITE I & II MIDGET I WITH DRUM BRAKES AN5, HAN6, GAN1 |
| 23 | AHA6419 | 8 | SCREW ALL MODELS 3/16" |
| 24 | GHF306 | 16 | FLAT WASHER ALL MODELS 3/16" |
| 25 | WL700101 | 8 | SPRING WASHER ALL MODELS 3/16" |
| 26 | 14B7889 | 8 | DOMED NUT ALL MODELS 3/16" |
| 27 | AHA5216 | 1 | STOWAGE BAG ALL MODELS |
